Infrared Paint Dryer & Curing Systems

Victory’s Heatlight range of infrared drying & curing systems has models for both large & small jobs.

Ideally suited for car body repair shops, there is a model for vehicles of multiple sizes.

Our infrared drying systems are also suitable for non vehicle applications including drying & curing finishes on woods & metals.

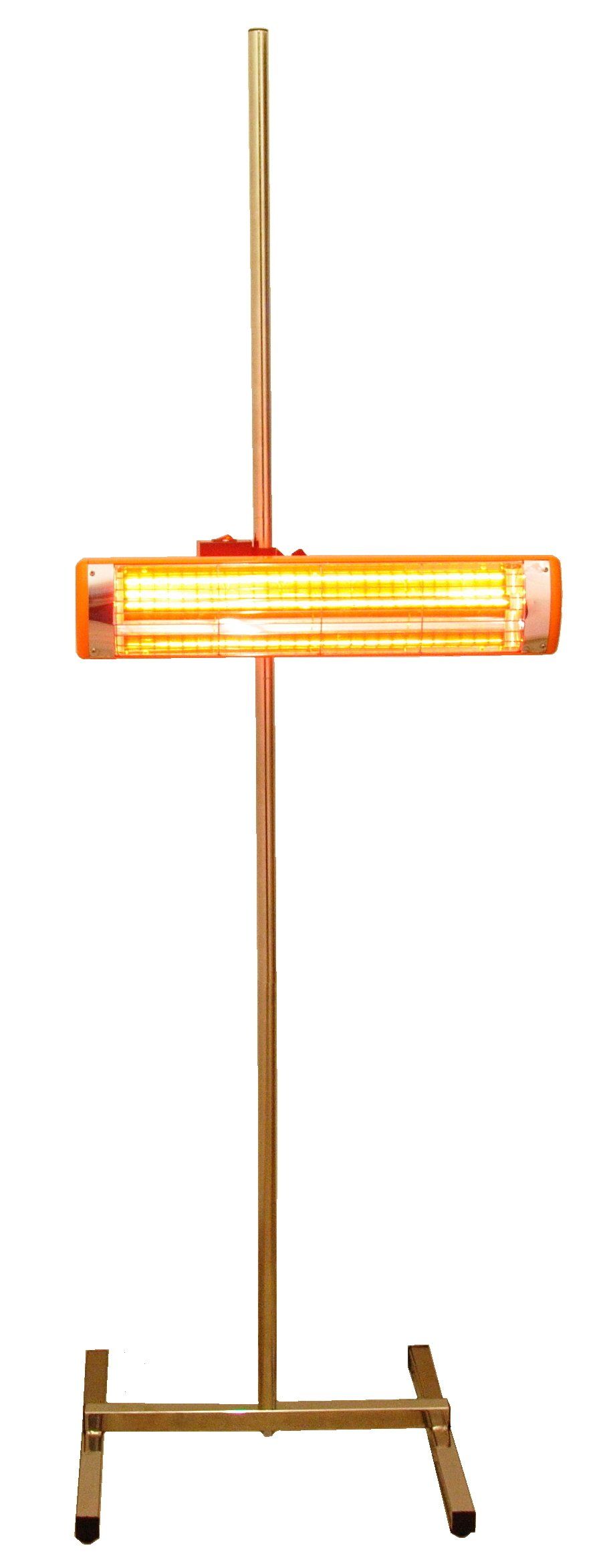

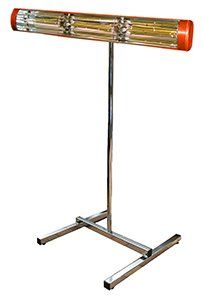

Victory Lighting VLP10 Small Paint Dryer

Small Paint Drying Systems

Click On The Images Below For More Information

  • Large Paint Drying Systems

    Victory’s Heatlight range of large paint dryers utilises 1 & 1.5kW glare control lamps, configured in individual cassettes to yield up to 6kW of drying heat.


    The lamps emit short wave infrared heat which is ideal for optimising drying of water-based paints.


    These flexible systems allow each cassette to be adjusted and locked into position around the contours of the vehicle body, ensuring maximum area coverage.


    There are also options for temperature/distance sensors for ultimate controllability.


    Efficiency


    The reflectors in Victory dryers have been carefully designed to maximise efficiency and evenly distribute heat over the widest possible target.


    A unique feature of the Victory system is that each cassette can be profiled to the curves of the target. The Heatlight system thus delivers incredibly efficient heating with the best possible paint finish.


    For the ultimate flexibility and efficiency, the VLPV30 has two cassettes that can be independently rotated to achieve many different drying configurations.

    Fit For The Job

    XL for larger vehicles


    Modern vehicles, particularly SUVs, are increasingly tall. The Heatlight range therefore includes ‘XL’ versions which have extended reach and height.

    • Tried and tested over years and 1000s of installations
    • Designed and engineered in the UK with longevity in mind
    • Manufactured from top quality steel and aluminium
    • Full warranty and easy to access spares
    • Low glare lamps for eye safety in the workplace
    • Lockable rear wheel castors


    • Wide wheels to roll over gratings
    • Individually switched cassettes giving great
    • drying flexibility
    • Horizontal or vertical cassette operation
    • Long lamp life of up to 20,000 hours
    • Locking gas strut to fix arm height
    • Reduced energy consumption; no fans or filter changes
